I took inspiration from the geometry of a pomegranate to design a seating area that would be placed along the bank of the Schuylkill River at Bartram's Garden in Philadelphia.
Analysis of pomegranate structure. Each seed is a rhombic dodecahedron and they compact together to form tight clusters.
Site analysis at the river bank of the Schuylkill River at Bartram's garden. Concept model to explore the geometry on an incline. Bug models to represent the construction of a rhombic dodecahedron and negative space.
3D renderings on the site made in Rhino and Vray.
Site plan map connects between these two slides to show relation to the main dock at Bartram's garden.

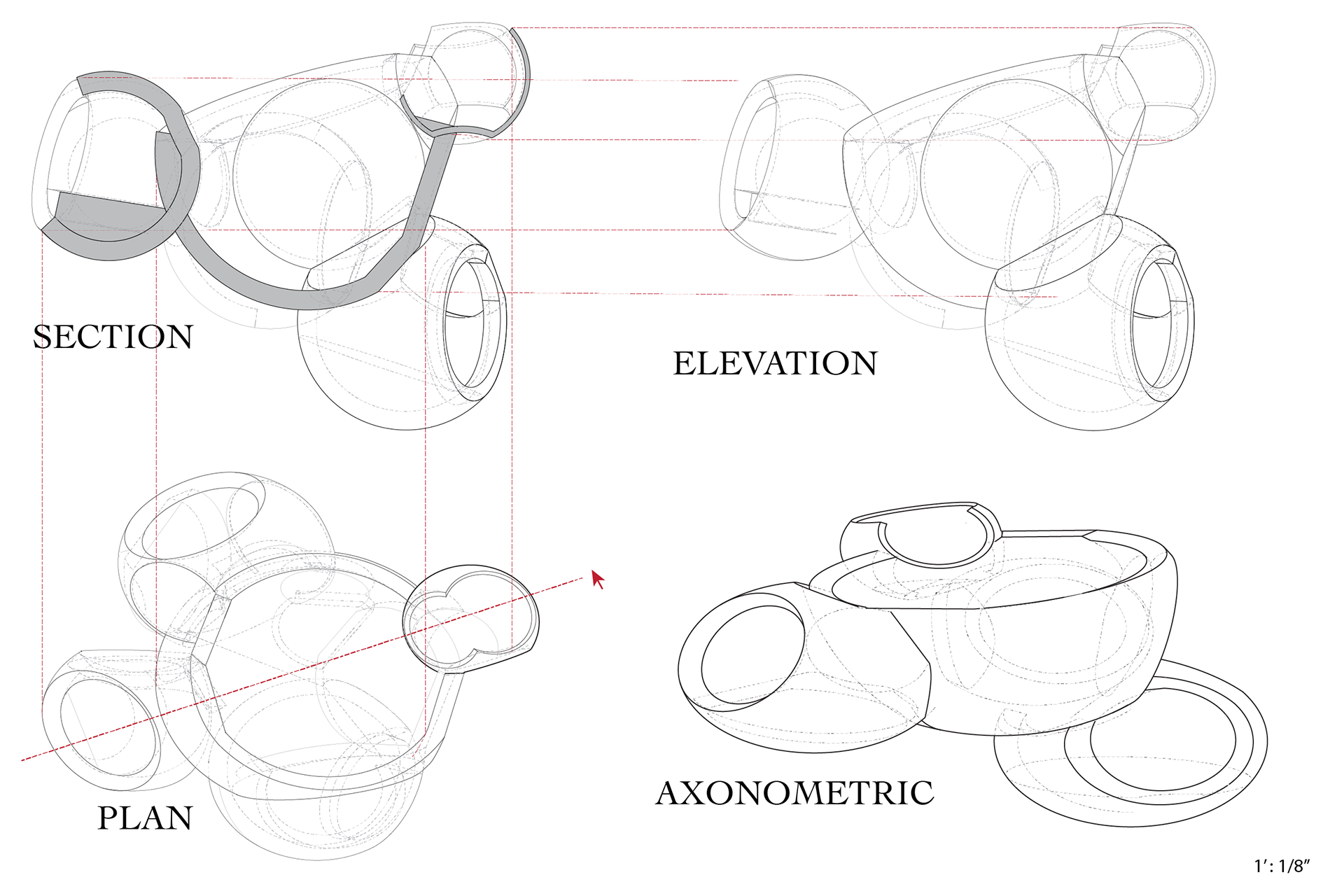

Orthographic views of model.
Module for two individuals.
To sit, stand, to look out into the river and city in the distance.
View from above.
Models designed in Rhino. Renderings in VRay. Graphics in Adobe Illustrator and Photoshop. Hover over the images for details or contact me for more information.
